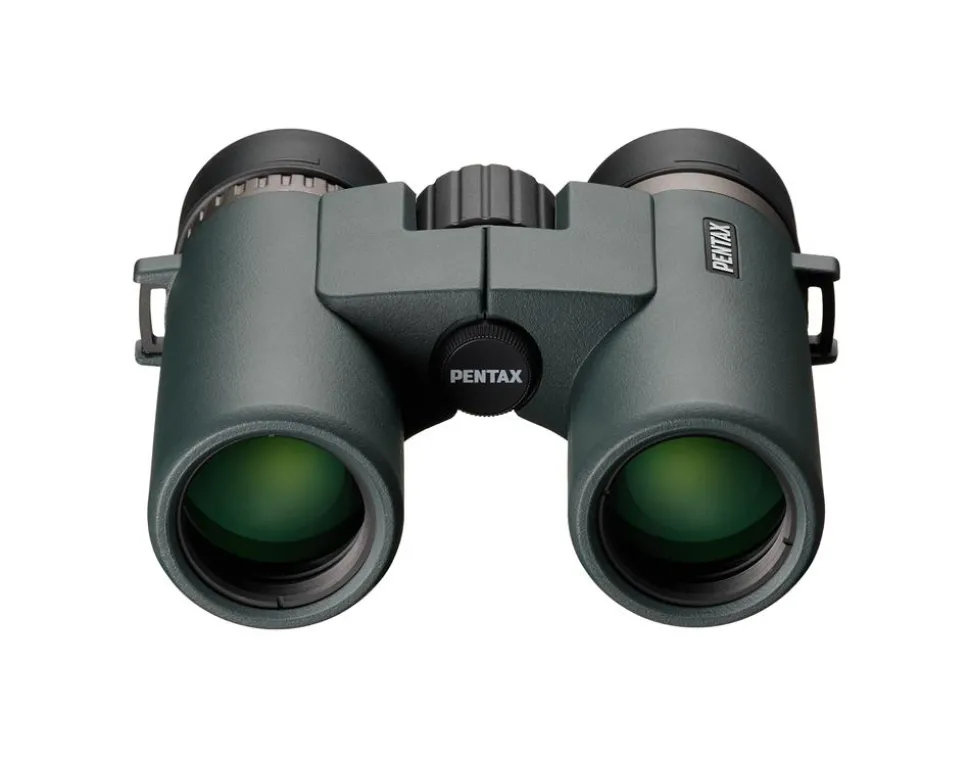

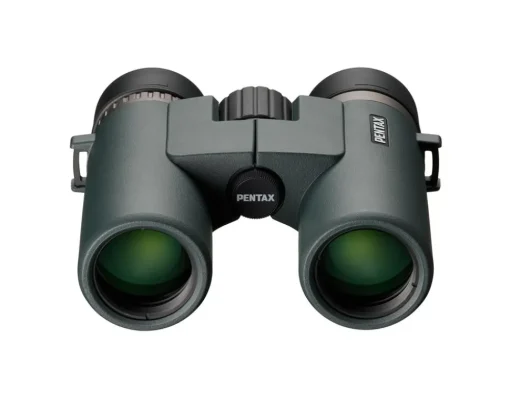

AD 10×32 ED Binocular

PRODUCT FEATURES

Bright, clear viewing
As with PENTAX’s top-end Z-series models, these new models provide a bright, clear view of the
subject with minimal glare and ghost images, thanks to the application of a full multi-coating process
to all lens surfaces, and a special coating designed to optimize light transmittance.
ED optical elements
As the first models in the PENTAX A -series to incorporate ED (Extra-low Dispersion) optical
elements for effective compensation of chromatic aberration, these binoculars deliver a
sharp, high-contrast, blur-free image.
Compact, lightweight design
While incorporating objective lenses with a 32-millimeter diameter to assure superb operability,
these models are designed to be compact and lightweight for easy carrying in a wide range of
applications — from bird watching and nature observation to the viewing of sports events and
concerts.
Other Features
• Exterior housing made of thermoplastic elastomer resin to improve holding comfort and
prevent accidental slippage
• Easy-to-operate diopter adjustment mechanism with a non-slip, ring-type adjuster
• Waterproof construction equivalent to JIS Class 6 standards for dependable use in adverse
weather conditions*
• Nitrogen-filled design to prevent interior lens surfaces from fogging due to sudden
temperature changes
• Extendible eyepieces for effortless shift between in-use and storage positions
• Easy mounting on a tripod, in combination with the optional TP-3 Tripod Adapter

Type: Roof prism, Center focusing, waterproof

Magnification 10x

Effective diameter of objective lens 32mm

Real field of view 6.0°

Field of view at 1000m 105M
Field of view at 1000 yards 942ft

Exit pupil aperture 3.2mm

Eye relief 15mm

Relative brightness 10.2

Focusing range 3.0m – ∞

9.0 ft. – ∞

Interpupillary distance adjustment 56~75mm

Waterproof 1 m depth of water (equivalent to JIS class 6), Nitrogen filled
