AI-1 USB-C Audio Interface

• Musicians, Podcasters
• Bus Powered / Mac, Windows
• 1 Mic / Hi-Z Preamp
• 1 Headphone Out, 2 Line Out
• 24-Bit / 96 kHz AD/DA Conversion
• 48V, Zero-Latency Direct Monitoring
• Includes Ableton Live Lite

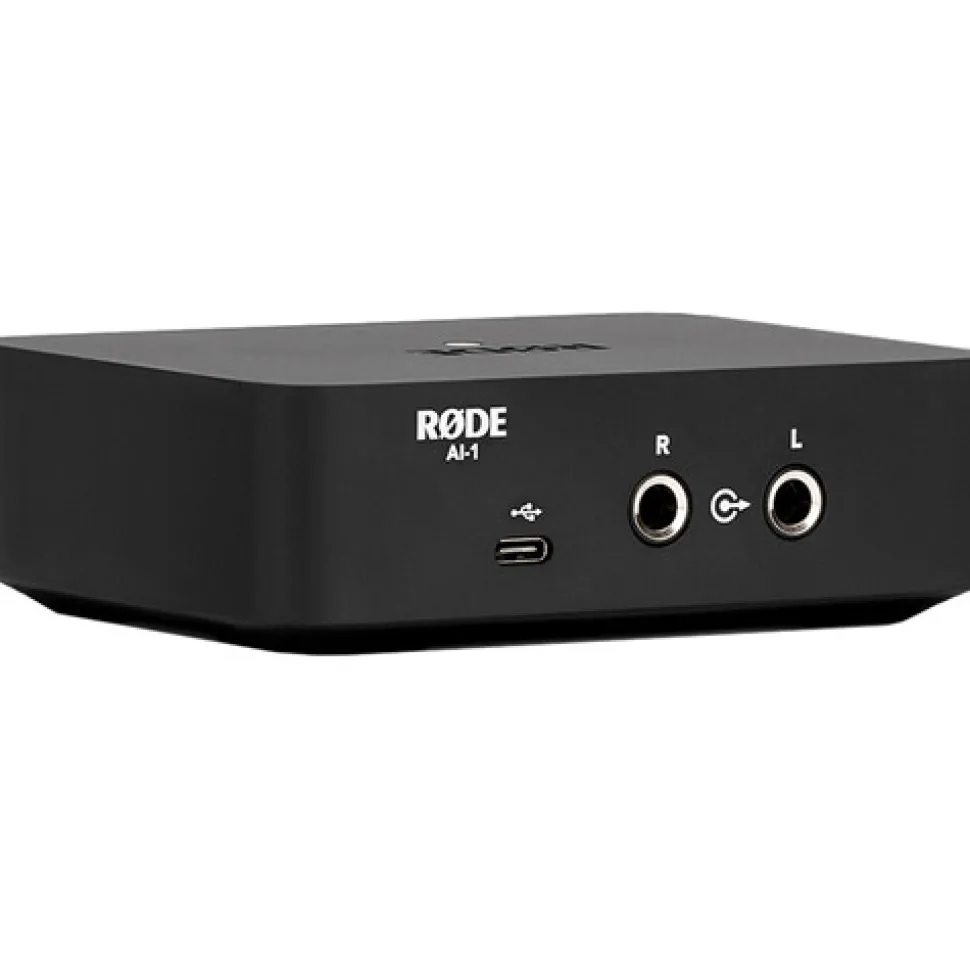

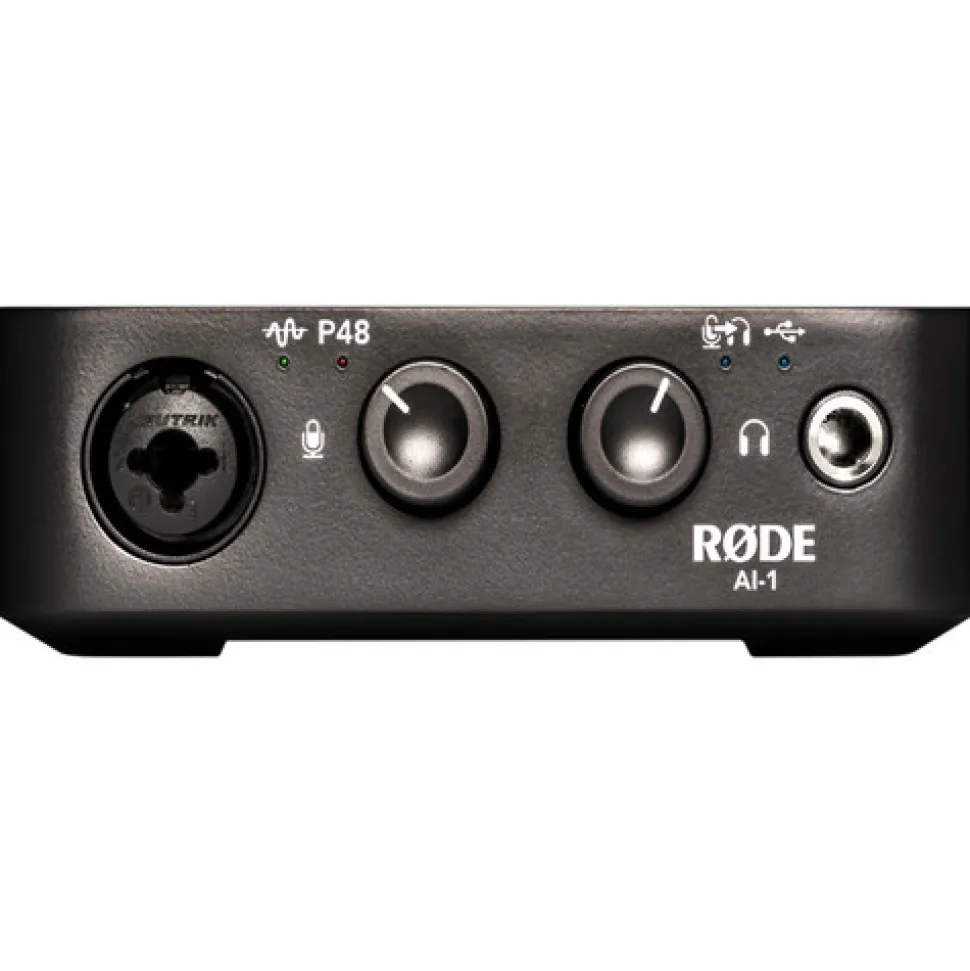

TheRode AI-1is a studio-quality audio interface well suited for recording vocals, instruments, and voiceovers into your Mac or Windows computer. The interface features a single, combo XLR-1/4″ input with phantom power, two balanced 1/4″ monitor outputs, and a single, discrete, studio-quality headphone output and level control. The device can operate in zero-latency monitoring mode, which connects the preamp directly to the headphone output for delay-free performance while recording. With the headphone input engaged, the two monitor outputs are bypassed. To engage the monitor outputs, simply remove the headphone plug from the jack.

The rugged aluminum body is finished with a satin black finish and features large rubber feet, which prevents the desktop interface from sliding about when engaged. The class compliant AI-1 requires no drivers and features a USB-C connector, which not only connect to your computer, but also provides powers as well. The Rode AI-1 ships with a USB cable and a license for Ableton Live Lite.

• Desktop USB audio interface with low-noise Class-A discrete preamplifier
• Sampling rate of up to 96 kHz / 24-bit
• One combo XLR-1/4″ combo input
• Two balanced 1/4″ monitor outputs
• One discrete studio-quality headphone output
• Phantom power for condenser microphones
• Zero-latency monitor mode
• USB bus powered
• USB-C connector for future proof operation
• Rugged body with Satin Black finish
• Class compliant—no drivers required
• Includes Ableton Live Lite
• Includes USB cable

Channels of I/O 1 Input / 2 Output

Built-In DSP No

Maximum Sampling Rate 96 kHz / 24-Bit

Number of Microphone Inputs 1

Built-In Microphone No

Input Level Adjustment 2x Knob

Gain/Trim RangeInputs:0 to 45 dB

High-Pass Filter No

Solo/Mute No

Analog Audio I/O 1x Combo XLR-1/4″ TRS Mic/Line Input
2x 1/4″ TRS Balanced Line Output
1x 1/4″ TRS Headphone Output

Phantom Power 48 V

Digital Audio I/O No

Host Connection USB-C

Host Connection Protocol Not Specified by Manufacturer

USB (Non-Host) No

Sync I/O No

Network I/O No

MIDI I/O No

Expansion Slots No

Wireless No

Frequency Response 20 Hz to 20 kHz ±1 dB

Maximum Output LevelMonitor Outputs:-6 dBu

Headphone Output Power 24 mW into 32 Ohms
245 mW into 300 Ohms

ImpedanceMic Inputs:1.3 Kilohms
Hi-Z Inputs:0.9 Megohm

Dynamic Range 104 dBu

EIN -128 dBA

Digital Audio Sample Rates 44.1 / 48 / 88.2 / 96 kHz

Sample Rate Conversion No

Bit Depths 24-Bit

Latency Zero-Latency Direct Monitoring

Sync Sources No

ClockingInternal

Media/Memory Card Slot No

OS Compatibility macOS 10.11 or Later/Windows 7 or Later

Mobile App Compatible No

Power Requirements USB Bus Power

Dimensions 4.9 x 3.9 x 1.5″ / 124 x 100 x 38mm

Weight 19.8oz / 561.3g
