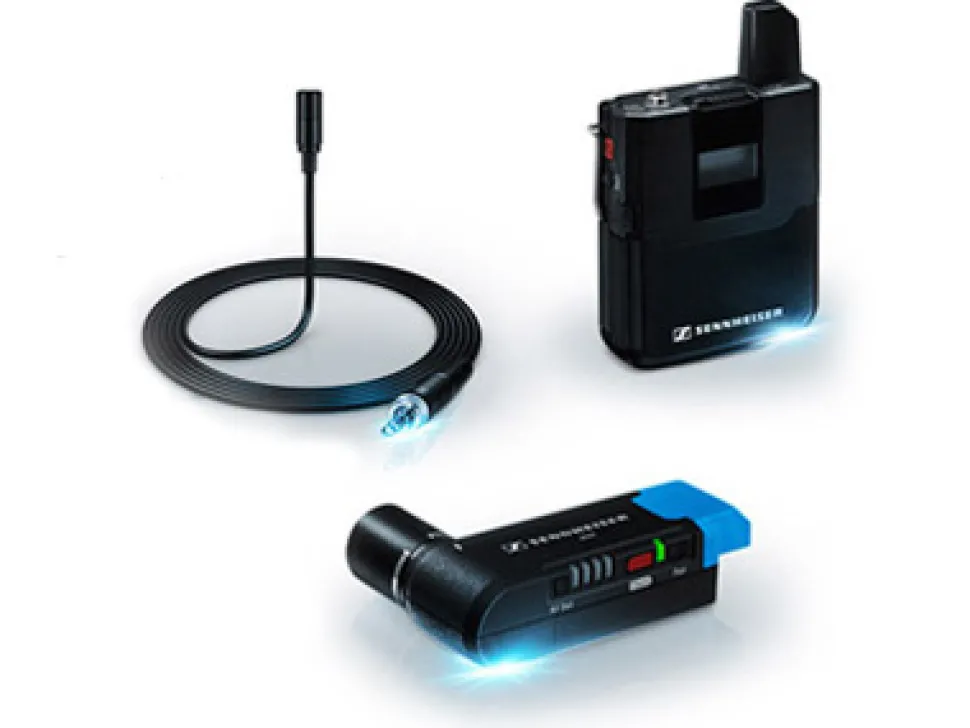

AVX ME2 SET-4-US AVX Dig Wireless

AT A GLANCE

• EKP XLR Receiver
• SK Bodypack Transmitter
• ME2 Lavalier Microphone
• Plug and Record Functionality
• Automatic Sensitivity Adjustment
• Receiver Switches On/Off Via 48V
• AES 256-bit Encryption
• Metal Housing

DESCRIPTION

Designed for plug and record operation with fully self-configuring digital operation, the AVX Camera-Mountable Lavalier Digital Wireless Set from Sennheiser is well suited for film and video production, as well as electronic news gathering (ENG) and A/V rental houses. The system consists of the EKP receiver, SK bodypack transmitter, and an ME2 lavalier microphone. The AVX system provides a variety of automatic functionality aimed at flexibility and speed including auto-dynamic range settings, which automatically adjusts the audio level to a recording device’s input sensitivity, reducing distortion and eliminating the need to adjust your mic’s level. The system also offers link protection, a feature that quickly scans available frequencies and will automatically switch before any interference becomes audible.

The EKP receiver has a compact design that plugs directly into the XLR input on your camera or recording device and includes the necessary adapters for use with DSLR cameras. Additionally, the EKP can swivel, allowing it to be used with other attachments mounted to a camera. It powers on and off automatically when it senses 48V from your recording destination, for fast recording and saving battery life when not in use.

Bundle Includes:

• ME 2 Lavalier Mic
• AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz)
• AVX EKP Camera Plug-On Digital Wireless Receiver (CH 8: 1920 to 1930 MHz)

SPECIFICATIONS

ME 2 Lavalier Mic

Transducer Electret Condenser
Polar Pattern Omnidirectional
Frequency Response 30 Hz – 20 kHz
Sensitivity 20 mV/Pa (in free field, no load @ 1 kHz)
Equivalent Noise Level 36 dB
Maximum Sound Pressure Level (SPL) 130 dB (passive)
Power Requirements Phantom Power Provided by Wireless Transmitter
Operating Voltage 7.5 V (stand alone)
Output Connector 1/8″ (3.5 mm) Mini-Jack (Unbalanced)
Applications Speakers, Hands-free vocals, broadcast, live performance, wireless videography, etc.
Cable Length 5.25′ (1.6 m)
Package Weight 0.1 lb
Box Dimensions (LxWxH) 3.2 x 2.6 x 0.4″

AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz)

Frequency Response 20 to 20,000 Hz
Dynamic Range > 120 dB (A)
THD Typical 0.1%
Audio Sampling 24-bit at 48 kHz
Signal to Noise Ratio > 90 dB (A)
RF Frequency Range 1880 to 1930 MHz (country specific)
Modulation GFSK with return channel
Diversity TDMA fast switching antenna diversity
Latency 19 ms
Temperature Range

• Operation: 14 to 131° F (-10 to +55° C)
• Storage: -4 to 158°F (-20 to +70°C)
• Transmission Power 100 mW average (250 mW peak), country specific
  Frequency Response Mic: 50 to 20,000 Hz Line: 20 to 20,000 Hz
  Microphone Max Input Level Mic: 2.2 V RMS
  Line Max Input Level 3.3 V RMS
  Input Impedance 1 MOhm
  Input Sensitivity Automatic sensitivity adjustment
  Power Supply Optional Battery: Li-ion 3.7 V
  Operating Time Typical: 15 hour with Energy pack
  Input Connector 1/8″ (3.5 mm) jack
  Weight 3.1 ounces (87.0 g) excluding energy pack
  Package Weight 0.95 lb
  Box Dimensions (LxWxH) 13.8 x 3.3 x 2.7″

  AVX EKP Camera Plug-On Digital Wireless Receiver (CH 8: 1920 to 1930 MHz)

  Frequency Response 20 to 20,000 Hz
  Dynamic Range > 120 dB (A)
  THD Typical 0.1%
  Audio Sampling 24-bit at 48 kHz
  Signal to Noise Ratio > 90 dB (A)
  RF Frequency Range 1880 to 1930 MHz (country specific)
  Modulation GFSK with return channel
  Diversity TDMA fast switching antenna diversity
  Latency 19 ms
  Temperature Range

• Operation: 14 to 131° F (-10 to +55° C)
• Storage: -4 to 158°F (-20 to +70°C)
• RF Sensitivity <-90 dBm
  Transmission Power Typical 15 dBm e.i.r.p.
  Audio Output XLR male, balanced
  Audio Output Level -30 dBu to 0 dBu in 4 steps
  Power Supply BA 20 (Li-ION 3.7 VDC), alternative USB
  Operation Time > 4 hours
  Weight 3 oz (85 g)
  Package Weight 1.35 lb
  Box Dimensions (LxWxH) 12.7 x 6.7 x 2.9″
