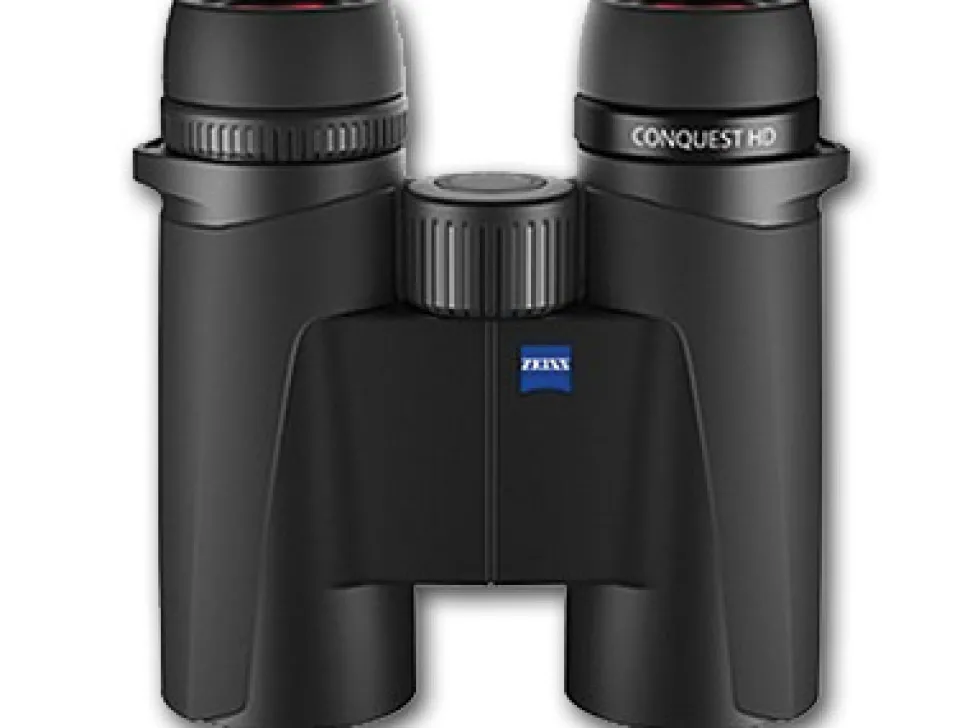

Conquest 10×32 HD B T* Roof Prism Binoculars

OVERVIEW

The 10×32 Conquest HD Binocular from Zeiss combines extra-low dispersion (ED) glass elements with an aluminum housing and the build quality that industry professionals and nature enthusiasts expect from Zeiss. By applying T* coatings to the ED glass, Zeiss engineers made this binocular capable of transmitting up to 90 percent of available light. The phase-corrected Schmidt-Pechan prism design complements the ED glass and results in an image that is relatively bright and rich with lifelike colour.

This model of the Conquest HD is configured with 8x magnification, suitable for intermediate range glassing in the field, at the range, or on the trail. The nitrogen purged aluminum housing, 64 degree viewing angle, 5-foot minimum focus distance, and non-slip rubber focus wheel make the Conquest HD a full-featured optic ready for almost any outdoor glassing activity.

HD Lens System

The High Definition (HD) lens concept from Zeiss includes extra-low dispersion (ED) glass elements that evenly transmit the visible spectrum and increase light transmission. Finishing the ED glass with T* multi-layer coatings enables the Conquest HD binocular to render up to 90 percent of available light.

Schmidt-Pechan Roof Prism Design

The Schmidt-Pechan prism configuration enables a relatively compact body size compared to other roof prism designs. A phase-corrective coating on the prisms enhances light transmission and helps to correct the alignment of visible wavelengths. Phase-corrected prisms are designed to minimize chromatic aberration and produce lifelike colour saturation.

T* Multicoated Optics

Multi-layer T* coatings are used on all Zeiss premium sport optics. The coating is chemically engineered to minimize reflections by lens elements and faithfully transmit the entire visible spectrum while preserving sharpness at the edge of the viewing field.

LotuTec Protective Coating

Objective and ocular lenses are coated with a LotuTec moisture/abrasion-resistant coating. This layer causes moisture, including snow and rain, to bead up and roll off the lens surface. In addition to reducing lens occlusion, this coating helps prevent debris from sticking to lens surfaces and makes for easier removal of dirt and dust.

Build Quality

Rubber polymer armoured aluminum housing, waterproof construction (submersible to 400 mbar), and broad operating temperature range (-4 to 145°F) equip the Conquest HD series for a wide range of outdoor applications.

SPECIFICATIONS

Prism Type Roof
Magnification 10x
Objective Lens Diameter 32 mm
Angle of View 68° (apparent)
Field-of-View 355.42′ @ 1000 yd / 118 m @ 1000 m
Minimum Focus Distance 4.92′ / 1.5 m
Exit Pupil Diameter 3.2 mm
Eye Relief 16 mm
Interpupillary Adjustment54 – 74 mm / 2.13 – 2.91″
Dioptric Correction ±4
Focus Type Centre
Tripod MountYes (Adapter Optional)
Dimensions 5.12 x 4.72″ / 13 x 12 cm
Weight 22.22 oz / 630 g
