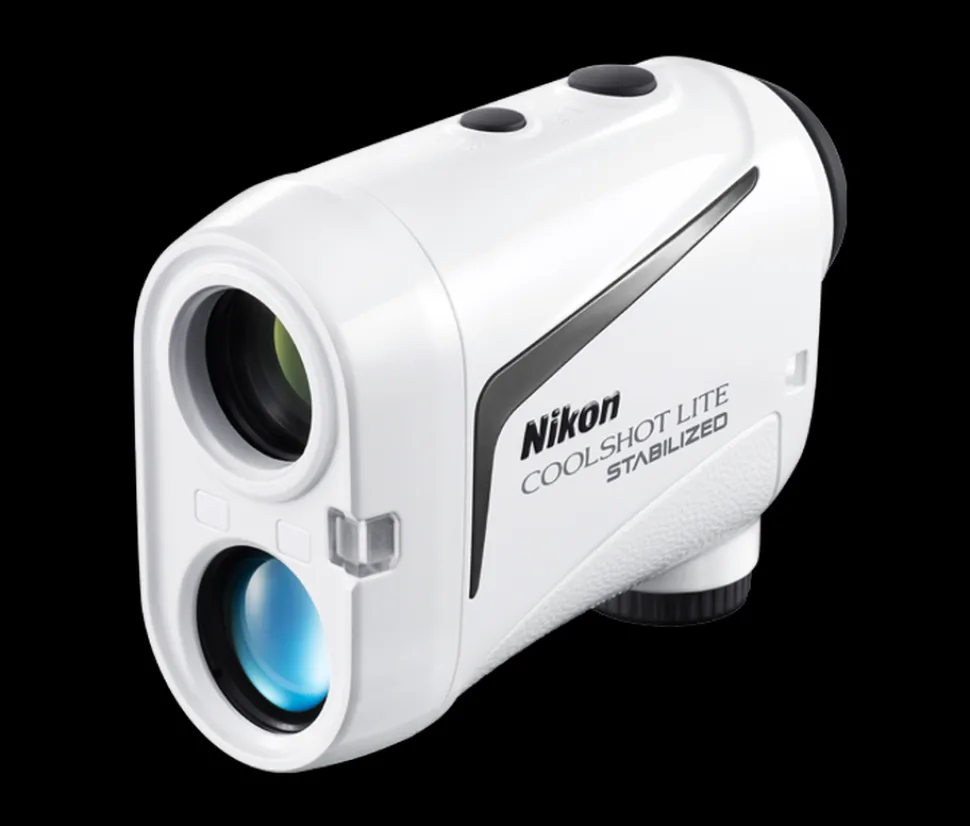

Coolshot Lite Stabilized Rangefinder

From the moment you step onto the tee box and look through the COOLSHOT LITE STABILIZED, you’ll know your game has changed. The view is stunning—bright, clear and sharp thanks to Nikon’s brilliant optics.

AT A GLANCE

1. Measurement Range Distance: 8-1,200 yd. (7.5-1,090m)

2. Increment Reading Actual Distance: every 1m/yd.

3. Accuracy (Actual Distance) ±0.75m/yd. (shorter than 700m/yd.),±1.25m/yd. (700m/yd. and over, shorter than 1,000m/yd.)
   ±1.75m/yd. (1,000m/yd. and over)

   Under Nikon’s measurement conditions.

4. Magnification 6x

5. Effective Objective Diameter 21mm

6. Angular Field of View (Real) 7.5°

7. Exit Pupil 3.5mm

8. Eye Relief 18.0mm

9. Diopter Adjustment +/-4°

10. Power Source 1 CR2 Lithium Battery (DC 3V),Automatic power shut-off (after approx. 8 sec. unoperated)

11. Size (Length x Width x Height) 3.8in x 1.6in.x2.9in.

12. Weight w/o Batteries 170g

13. Operating Temperature -10 to +50°C (14 to 122°F)

14. Operating Humidity 80% or less (without dew condensation)

15. Waterproof Waterproof (up to 1m/3.3 ft. for 10 minutes)
    Fogproof
    Battery chamber is rainproof – JIS/IEC protection class 4 (IPX4) equivalent

    Under Nikon’s testing conditions.

16. Rainproof Rainproof – JIS/IEC protection class 4 (IPX4) equivalent

    Under Nikon’s testing conditions.

17. Battery Life Approx.2,200 actuations (at approx. 20°C (68°F))

    This figure may differ according to conditions such as temperature and other factors. Use only as a guide.

18. Laser Classification IEC60825-1: Class 1M/Laser Product
    FDA/21 CFR Part 1040.10: Class I Laser Product

19. Electromagnetic Compatibility FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI classB, CU TR 020, ICES-003

20. Environment RoHS
    WEEE

21. Wavelength (nm) 905

22. Pulse Duration (ns) 9.7

23. Output (W) 33.8

24. Beam Divergence (mrad) Vertical: 0.25
    Horizontal: 1.8

25. Use Golf

26. Image Stabilization Yes
