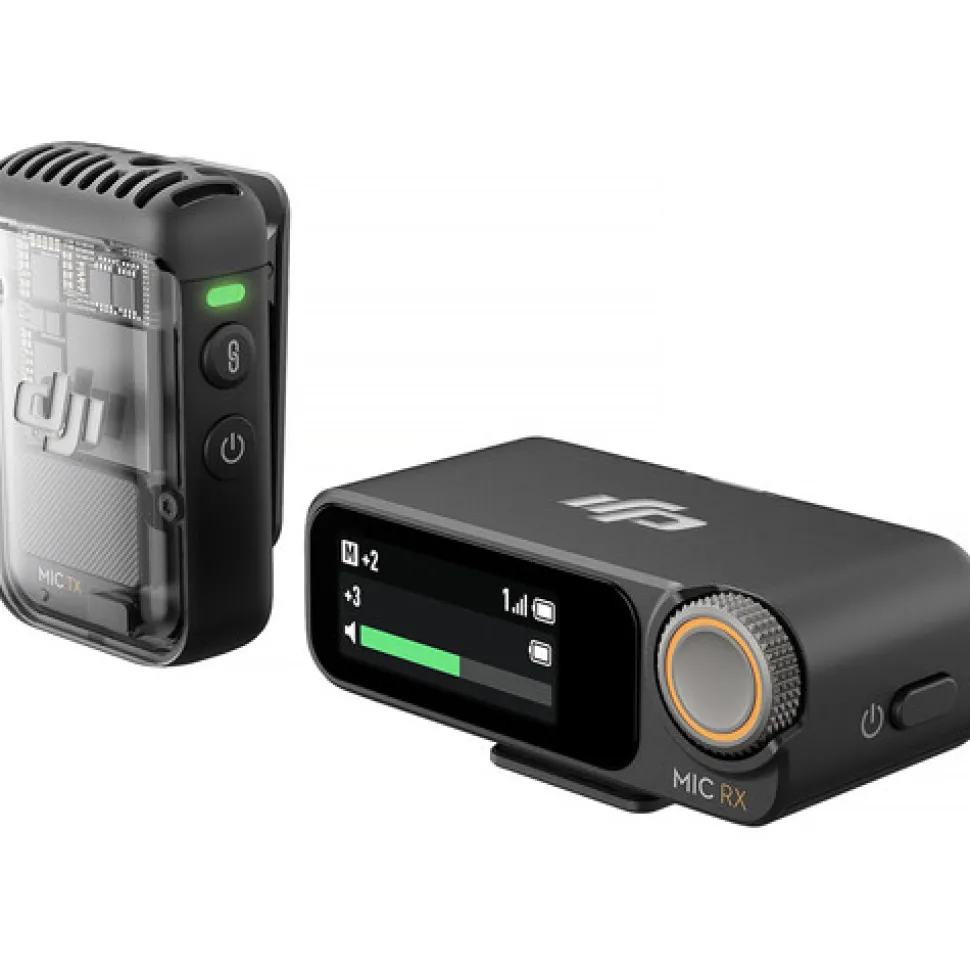

Mic 2 Compact Digital Wireless Microphone System

AT A GLANCE

• 1-Person Interviews, Videos, Streaming
• Connects to Cameras, iOS/Android Devices
• 1 x Clip-On Transmitter/Recorder Mic
• Compact Dual-Channel Receiver
• Intelligent Noise Cancelling
• Records 14 Hours of Audio
• 32-Bit Float Internal Recording
• Bright OLED Display, Headphone Out
• Built-In Rechargeable Batteries
• Up to 820′ Wireless Range

Content creators of all experience levels can raise the production values of their videos, interviews, and streaming with theDJI Mic 2, an easy-to-use, truly wireless digital microphone/recorder system that offers vivid audio quality while supplying all the elements needed to capture audio from your subject to a DSLR/mirrorless camera or iOS/Android smartphone. The system records clear and reliable audio at up to 820′ via a miniature clip-on omnidirectional mic/transmitter, which doubles as backup recorder for worry-free wireless. The tiny receiver can either be mounted on a DSLR camera or plugged directly into the Lightning/USB port of a smartphone or laptop. Simply complete the initial setup and you can be ready to record quality audio in seconds.

Second-Generation Updates

The new iteration of the Mic 2 features updated transmitter units with 2.4 GHz digital wireless and Bluetooth technology. Bluetooth allows you to connect the transmitters to your DJI Mimo app via iOS or Android device. You can even connect directly to your Osmo Pocket 3 or Osmo Action 4 camera. Toggle different settings via the Mimo app like intelligent noise cancellation, which reduces environmental noise for improved vocal capture or 32-bit float audio recording.

Wearable and Portable Microphones

• For a truly wireless experience, conveniently attach the transmitter to whatever you’re wearing via the integrated back clip (or by using the clip magnet) without having to wire yourself or your talent.
• You can also hold the transmitter in your hand and use it as a handheld microphone. Use the transmitter as a lavalier mic (no need for a separate mic), or operate it as a traditional bodypack transmitter by plugging an external lav mic (available separately).
• The built-in mic features an omnidirectional pickup pattern that ensures reliable speech capture, even if mic placement is less than ideal; your subject’s voice is captured with clarity, intelligibility, and consistency.
• One furry windscreen is provided to effectively suppress wind noise while still recording clear sound.
• Enjoy 6 hours of battery life on each component for 18 hours of recording in total.

High-Quality Audio with Flexibility for Postproduction

• DJI Mic 2 allows you to record high-fidelity, professional audio by accurately reproducing tone across a wide frequency range. To ensure that you are capturing a clean signal, you can monitor your sound via the receiver’s 3.5mm headphone output while recording.
• The Safety Track mode enables you to record a secondary audio track (in mono) as a backup with a lower volume of -6 dB (different from the main audio track), helping to safeguard your audio in case of unforeseen level spikes.

Built-In Recorder and Safety Track

• The transmitter has onboard recording capabilities with 8GB of storage for up to 14 hours of 48 kHz 24-bit backup recording. This allows you to record audio directly to the transmitter as a backup in case of wireless interference and dropouts. You can also use the transmitter as a standalone recorder.
• Files are in 48 kHz/24-bit mono WAV format and can be transferred to your computer via the USB-C cable. Toggle 32-bit float recording via Mimo app.

Reliable and Secure Wireless with Encryption

• The DJI Mic 2 is capable of recording crisp audio at distances of up to 820′ using DJI’s encryption technology for secure communications.
• The optimized wireless transmission system ensures a stable and reliable stream of audio, even in busy areas, such as train stations, shopping malls, and offices.
• The system avoids interference from TV and radio waves by operating in the 2.4 GHz frequency band, which occupies frequencies beyond those of television, radio transmissions, and UHF wireless microphone systems.

Easy to Operate

• The receiver features both a built-in, expanded OLED touchscreen and onboard dial for easy configuration.
• View and adjust volume, gain, and channels to find the perfect settings of your surroundings. Battery life, recording status, and wireless signal strength are also displayed.
• An internal motor sends clear haptic feedback during key operations like powering on or off, internal recording, muting and unmuting, and noise cancellation activation or deactivation.

Vastly Compatible

If you want to use the DJI Mic 2 with a smartphone, just insert either the Lightning or USB-C adapter into the expansion port at the bottom of the receiver and connect it to your phone and start shooting. These adapters support stereo audio playback without needing to unplug the receiver. Use the 3.5mm TRS cable to connect the camera’s 3.5mm mic connector to the receiver’s 3.5mm audio-output connector and start filming on your camera. The 3.5mm adapter supports automatic power on/off in sync with the power status of your camera.

SYSTEM

Wireless Technology Digital 2.4 GHz

Included Transmitters 1xClip-On with Microphone

Diversity Non-Diversity

RF Frequency Band 2400 to 2483.5 MHz

RF Channel Scanning Auto-Scan

Max Operating Range 820.2′ / 250m (Line of Sight)

Max Transmitters per Band 2

Built-In Recorder Yes

Timecode Support No

Mobile App Compatible Yes: Android & iOS
App Name: DJI Mimo

Bluetooth Not Specified by Manufacturer

Sample Rate/Resolution 48 kHz / 24-Bit

Encryption Proprietary

Modulation GFSK

THD <0.1 %

Receiver

Receiver Type Camera-Mount / Plug-In (Lightning) / Plug-In (USB-C) / Plug-In (1/8″ / 3.5 mm TRS)

Mounting Options Plug-In, Shoe-Mount (with Included Hardware)

Antenna Internal

Number of Audio Channels 2

Audio I/O1 x1/8″ / 3.5 mm TRS Female Unbalanced Output
1x1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output

Audio Output Level -12 to +12 dB

Signal ProcessingHigh-Pass Filter:
150 Hz

Frequency Response 50 Hz to 20 kHz

Network I/O No

Word Clock I/O No

USB/Lightning Connectivity1 xLightning Male (Audio)
1 xUSB-C Male (Audio)

USB Class-Compliant Yes

RF Output Power 100 mW (EIRP)

Power Requirements Battery

Battery Type1 xBuilt-In Rechargeable

Internal Battery Capacity 320 mAh

Battery Charging Time 70 Minutes

Approx. Battery Life 6 Hours (Lithium Rechargeable)

Display & Indicators OLED Touchscreen (Battery Status, Channel, Level, Menu Navigation, Transmitter Battery Status)

Operating Temperature 14 to 113°F / -10 to 45°C

Dimensions 2.1 x 1.1 x 0.9″ / 54.2 x 28.4 x 22.5mm

Weight 1oz / 28g

Transmitter

Transmitter Type Clip-On with Microphone

RF Output Power 100 mW

Audio I/O1 x1/8″ / 3.5 mm TRS Female Input

Pad No

Muting No

Auto-Level Control No

Recorder Sample Rates 48 kHz

Recorder Bit Depths 24 / 32-Bit Float

Audio File Formats WAV

Signal Processing No

Frequency Response 50 Hz to 20 kHz

Sync Method Proprietary

Antenna Internal

Power Requirements Battery

Battery Type1 xBuilt-In Rechargeable

Internal Battery Capacity 320 mAh

Battery Charging Time 70 Minutes

Approx. Battery Life 6 Hours

USB/Lightning I/O USB-C

Display & Indicators No

Operating Temperature 14 to 113°F / -10 to 45°C

Dimensions 1.8 x 1.2 x 0.9″ / 46.1 x 31 x 21.8mm

Weight 1oz / 28g

Microphone

Microphone Type Integrated

Sound Field Mono

Capsule Electret Condenser

Polar Pattern Omnidirectional

Frequency Range 50 Hz to 20 kHz

Equivalent Noise Level 21 dB A-Weighted

Maximum SPL 120 dB SPL

Recharge Time 2.7 Hours

Battery Chemistry Lithium-Ion

Charging Interface USB-C

DC Input Power 5 VDC at 3 A

Dimensions 4.6 x 2.4 x 1.6″ / 116 x 59.7 x 41.5mm

Weight 7.1oz / 200g
