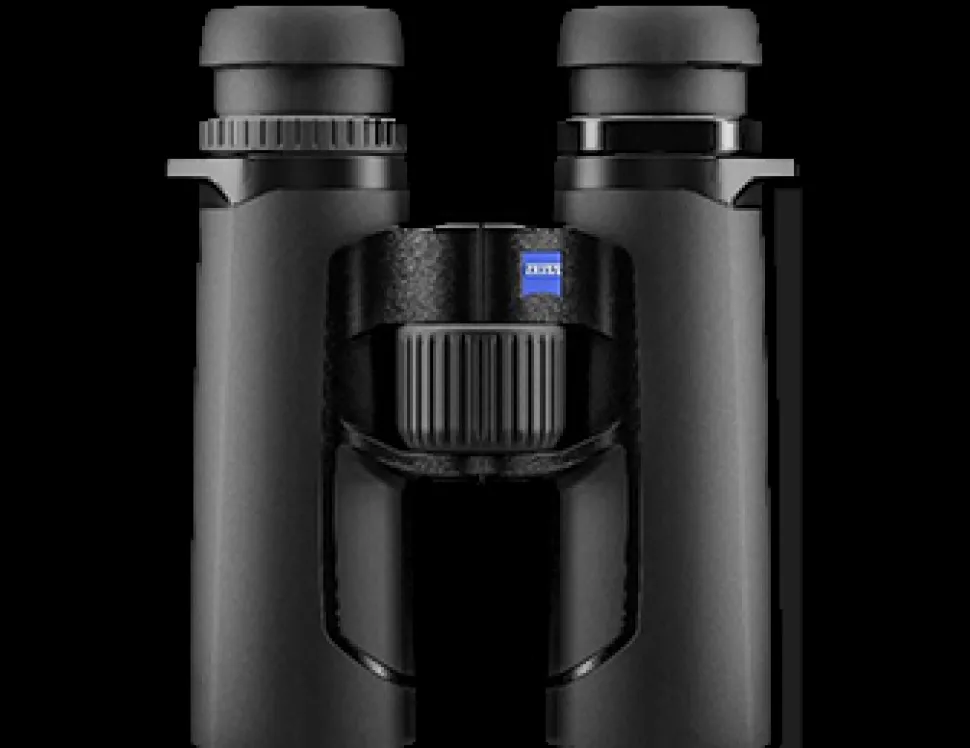

SFL 10×40 T* Ultra HD Binocular

AT A GLANCE

Lightweight and compact size for flexibility and convenient observation without muscle fatigue

Optical design devoted to optimal compactness due to:

• Reduced lens diameter
• Thinner lens elements
• Reduced distance between lens elements in the optical design
• Magnesium housing –lightweight and long-lasting

Great optical performance with UHD Concept

• New Ultra-High-Definition (UHD) concept –lifelike color reproductiondue to optimal combination of new lens coatings and optical design
• 90% light transmission
• Comfortable viewing and balance despite compact size –increases ease of use
• Wide field of view1: SFL 40 –140/115m
• Close focusing distance of 1.5m (4.9 feet)
• T* coating and LotuTec

Perfect ergonomics with SmartFocus Concept
Perfect positioning of largefocus wheel avoidingover-stretching of focusing finger
Fast but still precise focusing –even with gloves on

Removable, flip-down lens covers–can remainaffixed, or can be removed with ease
•Tripod interface –for a perfectly stable view duringlong-term observations
?Greaterflexibility for various field applications
•Neoprene Neck Strap and Carrying Case
•Removable and replaceable eye cups, same as Victory RF eye cups

Magnification 10
Effective lens diameter mm40
Exit pupil diametermm 4
Twilight factor 20
Field of viewm/1,000m (ft/1,000yds) 115 (345)
Subjective viewing angle ° 60
Close focusing distance m (ft)1.5 (4.9)
Diopter adjustment range dpt +-4
Exit pupil distance mm 18
Interpupillary distance (IPD) mm 52-74
Prism System Schmidt-Pechan
Coating T*
Nitrogen filling Yes
Water resistance mbar 400
Operating temperature °C (°F) -20/+55 (-4/+131)
Length mm (in) 144 (5.7)
Width at an interpupillary distance of 65 mmmm (in) 114 (4.5)
Weight g (oz)640 (22.6)
