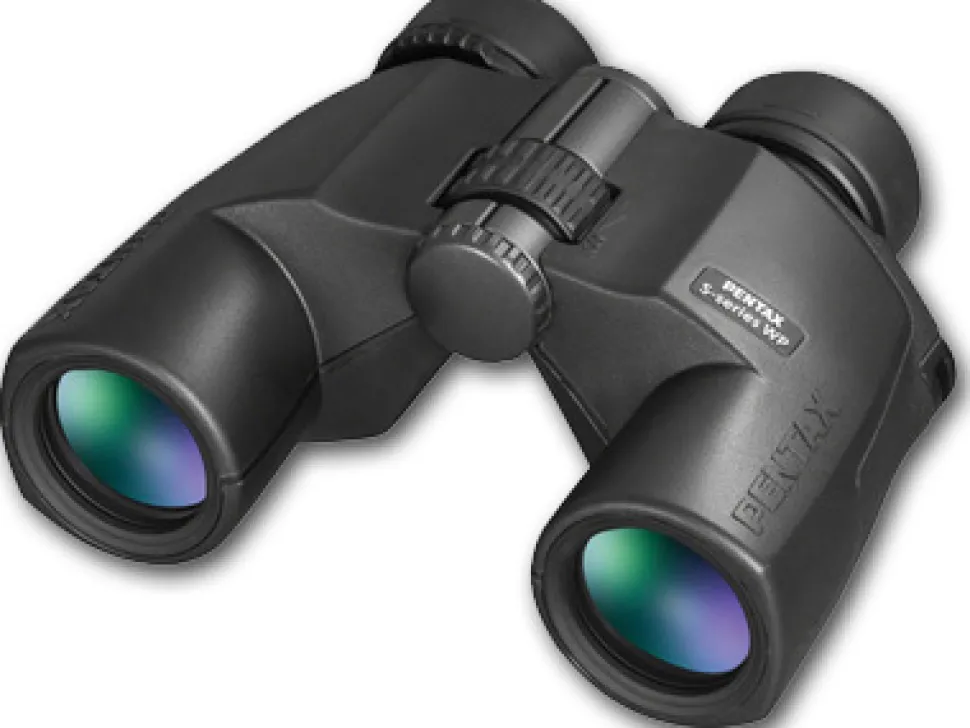

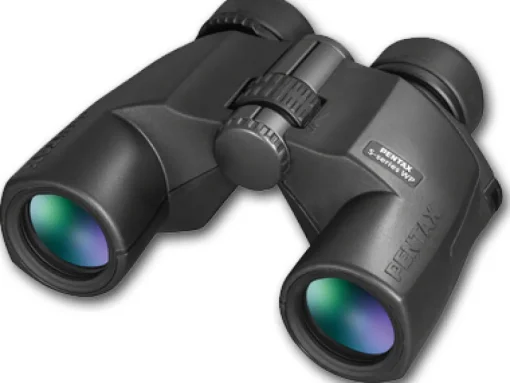

SP 8×40 WP Porro Prism Binoculars

PRODUCT HIGHLIGHTS

• BAK4 Porro Prism
• Fully Multicoated Optics
• Angle of View: 50°
• Nitrogen-Filled, Water and Fogproof
• Closed Bridge Configuration
• Slip-Resistant Rubberised Armouring
• Large Centre Focus Wheel
• Tripod Mountable with Optional Adapter
• Fold-Down Rubber Eyecups

OVERVIEW

Designed for a lifetime of rugged outdoor use Pentax’s 8×40 SP WP Binocular can be used with confidence in all weather and lighting conditions. The 40mm objectives are fully multicoated to reduce reflection and maximize light transmission through the entire optical path without making them overly cumbersome for a long day on the trail. Utilizing the traditional porro prism configuration gives scenes a rich depth of view for an immersive observation experience and provides a comfortable feel in the hand with a lot of surface area to maintain a sure grip. The coatings ensure bright and clear high-contrast images even in low-light, and its utilitarian 8x magnification brings subjects close while maintaining 363′ field of view to preserve situational awareness.

Complementing the optical performance are construction details made for the trail. The optical tubes are nitrogen-filled and O-ring sealed for fogproof performance and to make them submersible to as much as 3.3′. The binocular sports a generous 20mm eye relief and the fold-down eyecups seal against the ocular cavity to block stray peripheral light which can dim images.

Optical Performance

• 8x magnification
• 40mm objective lenses
• BAK4 porro prism optical path
• Anti-reflection fully multicoated optics
• 331′ field of view at 1000 yards
• 50° angle of view

Use and Handling

• Closed bridge configuration
• Large knurled centre focus wheel
• Right-eye diopter adjustment
• 20mm long eye relief, 5.0mm exit pupil
• Fold-down rubber eyecups seal against ocular cavity and block stray peripheral light

Construction Details

• Rubberised armouring protects against impacts and provides slip-resistant grip
• Nitrogen-filled, fogproof and submersible to 3.3′ (1m)
• Internal focusing system helps to maintain waterproof seals
• Tripod mountable with optional adapter

SPECIFICATIONS

Prism Type Porro
Magnification 8x
Objective Lens Diameter 40 mm
Angle of View 6.3° (actual)
Field-of-View 330.8′ @ 1000 yd / 109.83 m @ 1000 m
Minimum Focus Distance 11.6′ / 3.54 m
Exit Pupil Diameter 5.0 mm
Eye Relief 20 mm
Interpupillary Adjustment Not Specified By Manufacturer
Dioptric Correction Not Specified By Manufacturer
Focus Type Centre
Tripod Mount Yes (Adapter Optional)
Dimensions 7.0 x 5.4 x 3.0″ / 17.78 x 13.72 x 7.62 cm
Weight 31.8 oz / 902 g
