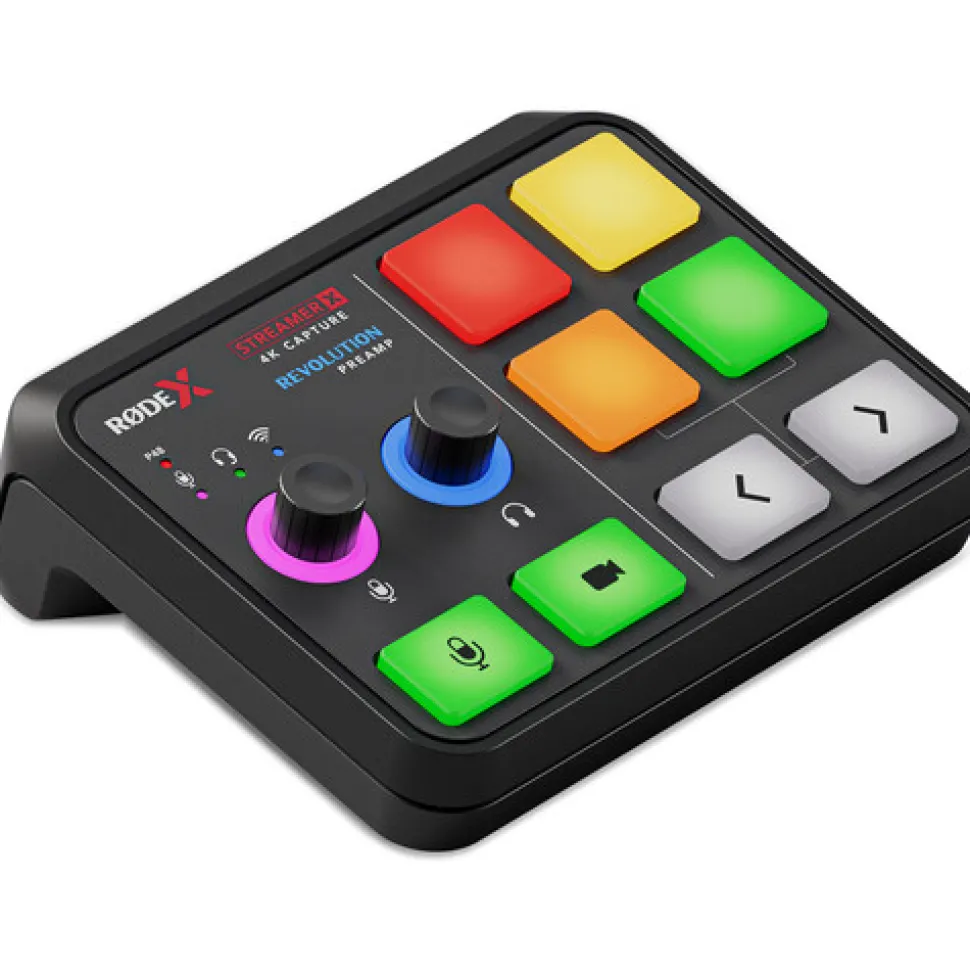

Streamer X Audio InterfaceVideo Streaming Console

The All-in-One Streaming Solution

Combining a professional audio interface and a video capture card in one ultracompact, intuitive package, theStreamer XfromRODE Xrepresents a new way to livestream incredible, broadcast-quality audio and video. Sporting a studio-grade audio input for mic- or line-level sources, a low-noise, high-gain Revolution preamp with selectable phantom power, and powerful onboard APHEX audio processing, the Streamer X makes it easy to deliver pristine audio quality to your streams, and the Streamer X even features integrated wireless-receiver technology for compatibility with any RODE Series IV wireless microphones and transmitters.

Of course, modern streamers and content creators need quality video to keep up with the competition as well, and that’s why the Streamer X also features HDMI I/O that supports up to 4K 30 fps and 2K 60 fps streaming, and up to 2K 120 fps and 4K 60 fps pass-through for exceptional video quality that will enhance any modern application from gaming, streaming, and podcasting to video content creation and corporate presentations. Two dedicated USB-C connections allow for dual-PC setups, and with the four customizable SMART pads, you cant trigger sounds, voice FX, and other types of engaging material on the fly. And if that’s not enough, you can expand your console’s functionality with full compatibility for all of RODE’s software solutions, such as UNIFY, RODE Central, and RODE Connect.

Flexible I/O

Despite its compact size, the Streamer X sports just the right amount of connections to facilitate most livestreaming applications.

• An XLR-1/4″ combo input jack with a Revolution preamp and selectable 48V phantom power
• A 1/4″ headphone output for monitoring your streams
• A 3.5mm headset output to join in on your streaming and produce more engaging content
• HDMI input and output/through for streaming and passing through high-quality, 4K video
• Two USB-C connections for dual-computer setups
• A third USB-C connection for convenient bus power
• A Kensington security slot to keep your Streamer X secure during use in public spaces

Intuitive Interface

The interface is designed to be simple yet powerful with easy-to-use colorful buttons and knobs. Two color-coded knobs let you control your audio input and headphone output.

Multicolor customizable SMART pads allow you to trigger sounds and vocal FX in real time, and you can switch through multiple banks of sounds via the arrow buttons. You can activate or deactivate audio or video content directly with the two dedicated front-panel buttons.

Tiny Footprint, Huge Potential

The Streamer X provides incredible streaming potential in a miniscule form factor that is supremely easy to transport and will take up an absolute minimum of your workspace real estate. Whether used in the comfort of your home studio or in a live public setting, the Streamer X is compact, efficient, and attractive.

Channels of I/O 2 Inputs / 2 Outputs

Built-In DSPNone

Maximum Sampling Rate 48 kHz / 24-Bit

Number of Microphone Preamps 1 Preamp

Built-In MicrophoneNone

Expansion SlotsNone

Analog Audio I/O1 xCombo XLR-1/4″ TRS Mic/Line Input
1 x1/8″ / 3.5 mm TRRS Headset In/Out
1 x1/4″ TRS Headphone Output

Digital Audio I/ONone

Host Connection / USB2 xUSB-C

Host Connection Protocol USB 3.0 / 3.1/3.2 Gen 1

USB (Non-Host)None

Sync I/ONone

Network I/ONone

MIDI I/ONone

Other I/O1 xHDMI Expansion Input
1 xHDMI Expansion Thru

Wireless ConnectivityNone

Sample Rates 48 kHz

Bit Depths 24-Bit

Sync SourcesNone

Memory Card SlotNone

OS Compatibility macOS
Windows
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Included SoftwareNone

Included Plug-InsNone

Mobile App Compatible No
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility

Mobile Device CompatibilityNone

Required Hardware USB-C Port

Internet Connection Required for Software/Driver Download

Power Requirements AC/DC Power Adapter (Included)

AC/DC Power Adapter Included

Anti-Theft Features Kensington Security Slot
