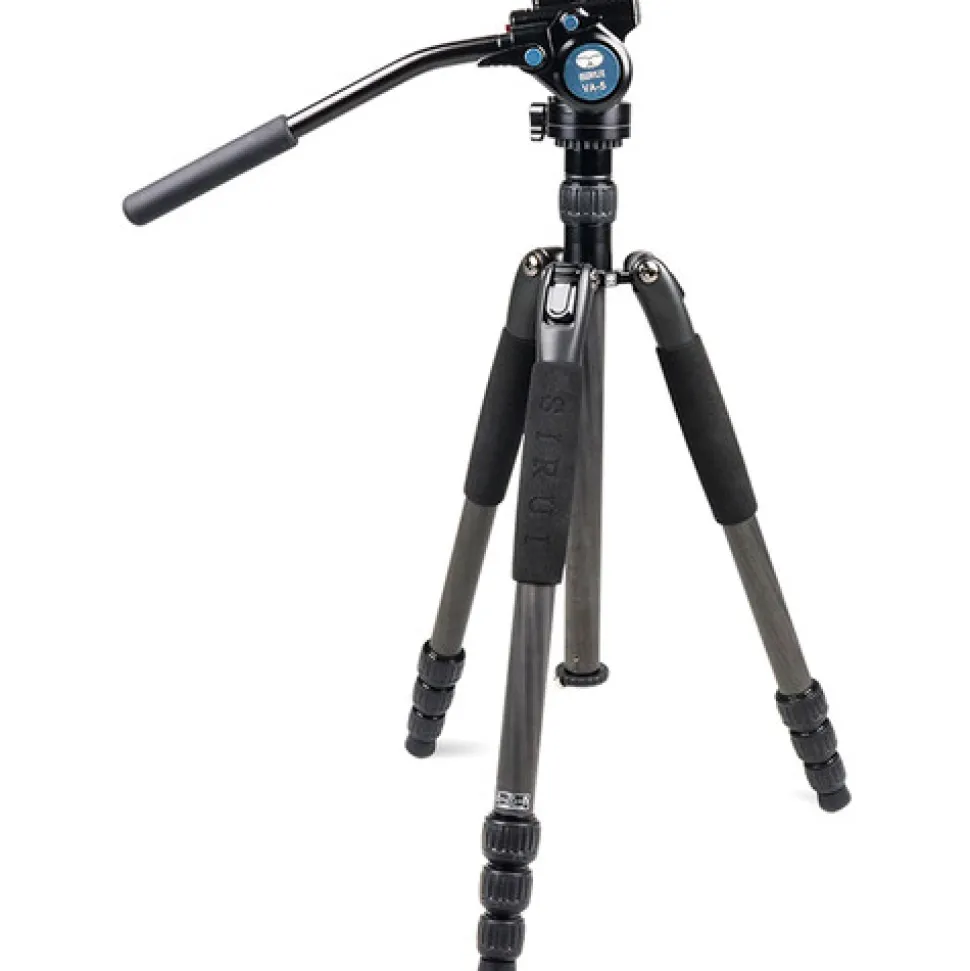

T-024SK Compact Tripod with VA-5X Fluid Head

AT A GLANCE

The legs can fold in the reverse to create a compact 15.7″ in length (without head), and twist locks on the four-section tripod open with a simple turn to extend the legs along with the removable center column to a maximum height of 58.7″.

The legs tighten with twist locks that adjust with a simple turn to extend the legs to a maximum height of 49.2″ without the center column. When the center column is included, it allows you to drop the tripod to a minimum height of 5.5″ without having to lift the column up. A built-in bubble level on top of the legs helps with balancing.

The VA-5X fluid head is installed on top of the tripod and supports compact DSLR or midsize cameras weighing up to 13.2 lb. It features dual safety locks on its quick release plate to prevent sliding. The head also features a single-stage pan handle. A TY-70A quick release plate with 1/4″-20 and 3/8″-16 threaded mounting screws is included with the head. VA-5 head weighs 1.3lb

T-024SK tripod with padded four-section legs and a VA-5 fluid head

Load capacity of 13.2 lb, 2.2 lb tripod weight, maximum height of 58.7″, and minimum height of 5.5″

Twist leg locks and removable center column

TY-70A quick release plate with 1/4″-20 and 3/8″-16 mounting screws

Camera Plate

Camera Plate Features Sliding Balance Plate, Quick Release

Camera Mounting Screw1 x1/4″-20 Male

Head

Base Mount 1/4″-20 Thread

Pan & Tilt

Drag Type Fluid

Panning Range 360°

Legs

Leg Lock Type Twist Lock

Leg Positions Locking 3 Positions and Continuously Adjustable

Leg Sections 4

Bubble Level Yes

Feet Features Rubber

Spreader None

Center Column

Center Column Features Removable

Center Column Sections 1

Center Column Extension Type Rapid

General

Load Capacity 13.23lb / 6kg

Maximum Working Height 58.66″ / 149cm

Max Height without Center Column 49.21″ / 125cm

Minimum Working Height 5.51″ / 14cm

Folded Length 15.75″ / 40cm

Materials Carbon Fiber, Magnesium

Tripod with VA5X Weight 3.06lb / 1.39kg
