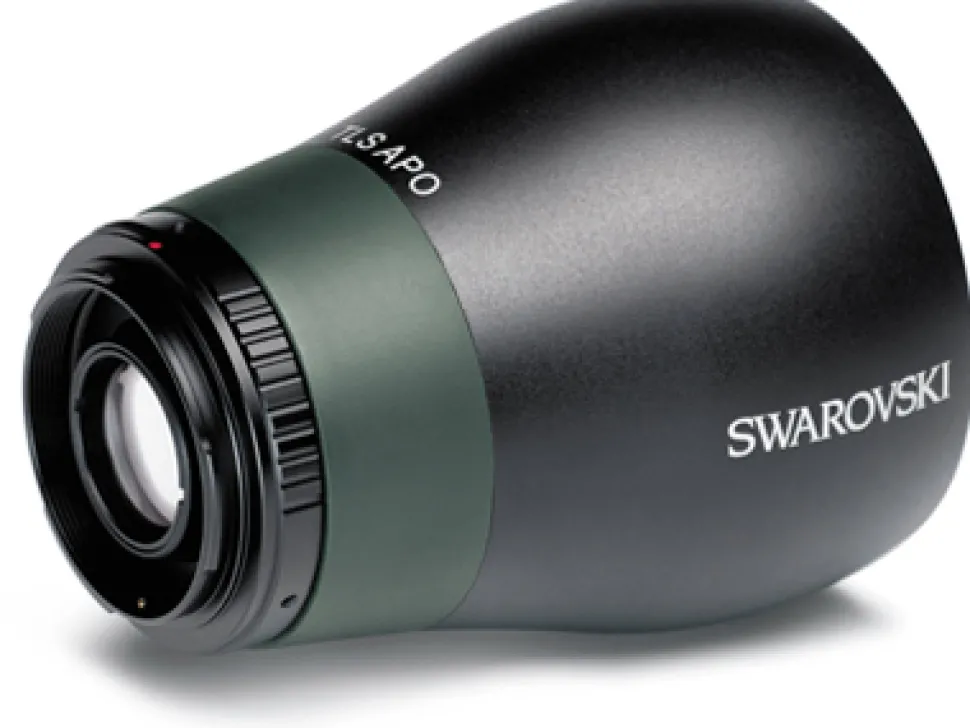

TLS 43mm ATX/STX Adapter for Full Frame Sensors

AT A GLANCE

• For Full-Frame Imaging Sensor Cameras
• For Digiscoping with DLSRs
• Apochromatic Lens
• Enables Viewing and Photography
• Works with Angled or Straight Modules

DESCRIPTION

The Swarovski TLS APO 43mm Digiscoping Lens for ATS/STS/ATM/STM/STR spotting scopes is a proprietary adapter used to connect a DSLR camera body with a full-size sensor to the viewing module of of the spotter, effectively using the scope as a lightweight, waterproof, super-telephoto lens. When the TLS APO, T2 adapter, and camera body are mounted to the spotting scope eyepiece, users are treated to a truly stunning digiscoping experience. The TLS APO has a 43mm lens that perfectly aligns the camera sensor with the focal plane of the transmitted image. Regardless of the camera used, you will capture contrast-rich and sharp video and still images using the premium optics of your Swarovski spotting scope. A camera and T2 camera adapter are required to complete the Swarovski digiscoping system, and are not included.

Effective Focal Length

• ATX/STX 65: 1,075 – 2,580mm
• ATX/STX 85: 1,075 – 2,580mm
• ATX/STX 95: 1,290 – 3,010mm
• ATS/STS 65: 1,075 – 2,150mm
• ATS/STS 80: 1,075 – 2,150mm

Minimum Aperture

• ATX/STX 65: 16.5
• ATX/STX 85: 12.6
• ATX/STX 95: 13.6
• ATS/STS 65: 16.5
• ATS/STS 80: 13.4

SPECIFICATIONS

Package Weight 1.25 lb
Box Dimensions (LxWxH) 8.5 x 5.2 x 4.4″
