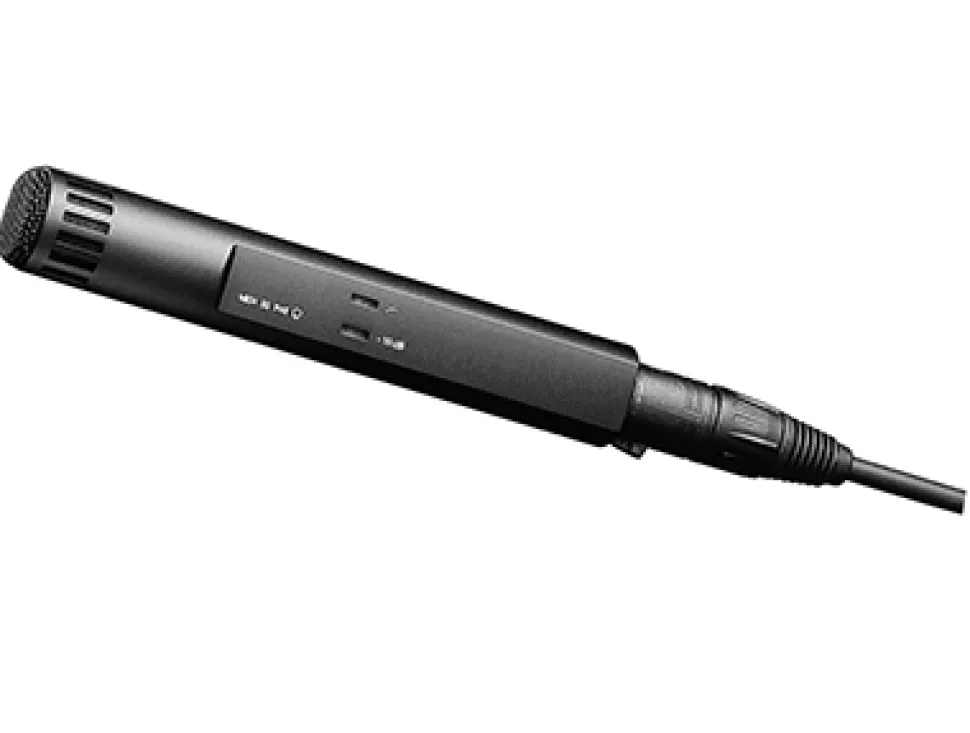

MKH 50 P48 RF Microphone #

AT A GLANCE

• The super-cardioid MKH 50 offers a higher attenuation of diffusefield and lateral sound than the cardioid microphone. It is principally designed for use as a soloist’s or spot microphone for applications requiring a high degree of side-borne sound muting and feedback rejection. The directional characteristics are frequency-independent.
• High rejection of lateral sounds
• Exceptionally low inherent self-noise
• Transformerless and fully floating balanced output
• Symmetrical transducer technology ensures extremely low distortion
• Switchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5 m
• Switchable pre-attenuation
• Dimensions Ø 25 x 153 mm
• Frequency response (Microphone) 40 – 20000 Hz
• Max. sound pressure level 134 (142) dB / 1 kHz
• Sensitivity in free field, no load (1kHz) 25 mV/Pa +- 1 dB
• Nominal impedance 150 Ω
• Min. terminating impedance 1000 Ω
• Equivalent noise level 12 (18) dB
• Equivalent noise level weighted as per CCIR 468-3 21 (27) dB
• Current consumption 2 mA
• Battery Specification 48 +- 4 V Phantom
• Black, anodised light metal body
